Features:
Model Number: Smart Robot Car Kit

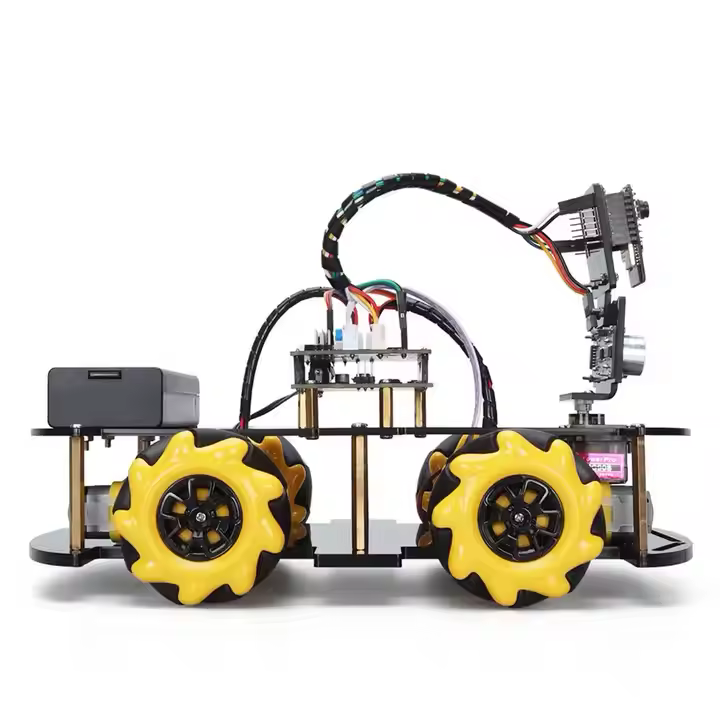

TT Motor Mecanum Wheel Car chassis kit
Functions: camera function, ultrasonic obstacle avoidance, tracking function, WIFI control
Features: main control board, lightweight structure, Mecanum wheel multi-directional movement
Weight: 970g
Size: 282x163x71mm/11.1×6.42×2.8inch
Specification:
Working voltage: 5v
Input voltage: 7-12V
Maximum output current: 2A
Maximum power consumption: 25W (T=75℃)
Motor speed: 5v 200rpm/min
Ultrasonic induction angle: < 15 degrees
Ultrasonic detection distance: 2cm~400cm
Bluetooth remote control distance: 10~50 meters
Servo motor angle range: 0~180°\0~360°
Input voltage: 7-12V
Maximum output current: 2A
Maximum power consumption: 25W (T=75℃)
Motor speed: 5v 200rpm/min
Ultrasonic induction angle: < 15 degrees
Ultrasonic detection distance: 2cm~400cm
Bluetooth remote control distance: 10~50 meters
Servo motor angle range: 0~180°\0~360°
Application:
Electric Toy Note: 18650 Battery is not included in the kit, you need prepare it by your side, thanks!
Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Package included:

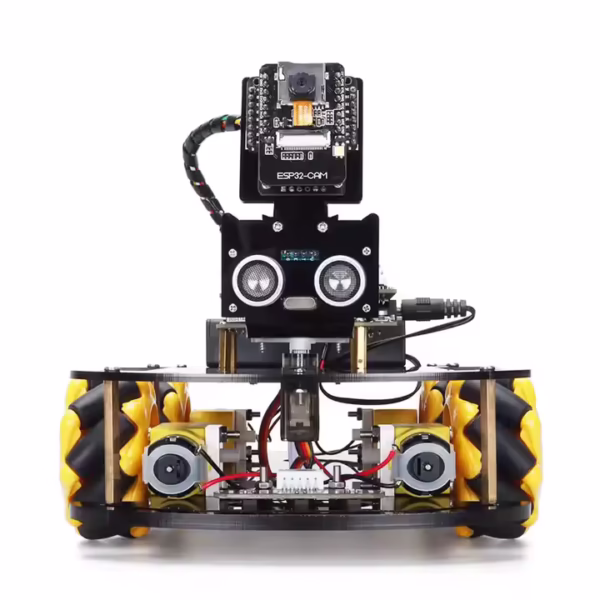

1 x Smart Robot Car Kit with ESP32-Cam
