Description

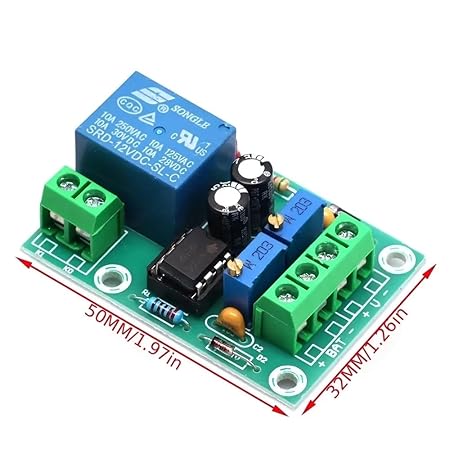

The XH-M601 12V Battery Charging Control Board is an intelligent charger power control panel designed for 12V battery systems. It offers automatic charging functionality and precise power management. This board is commonly used in various applications to efficiently charge and control 12V batteries, making it a versatile and essential component for power supply management.
Potentiometer Adjustment:
- RP1:adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
- RP2:adjust storage battery disconnect charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
Specifications:
| Power Supply(V) | 13.8-14.8V |
| Relay Operating Voltage | 12.4V |
| Relay Disconnect Voltage | 14.8V |
| Voltage Tolerance | +/-0.1V |
| Voltage Detection Way | DC voltmeter |
| Charging Type | 12V storage battery |
