Description:

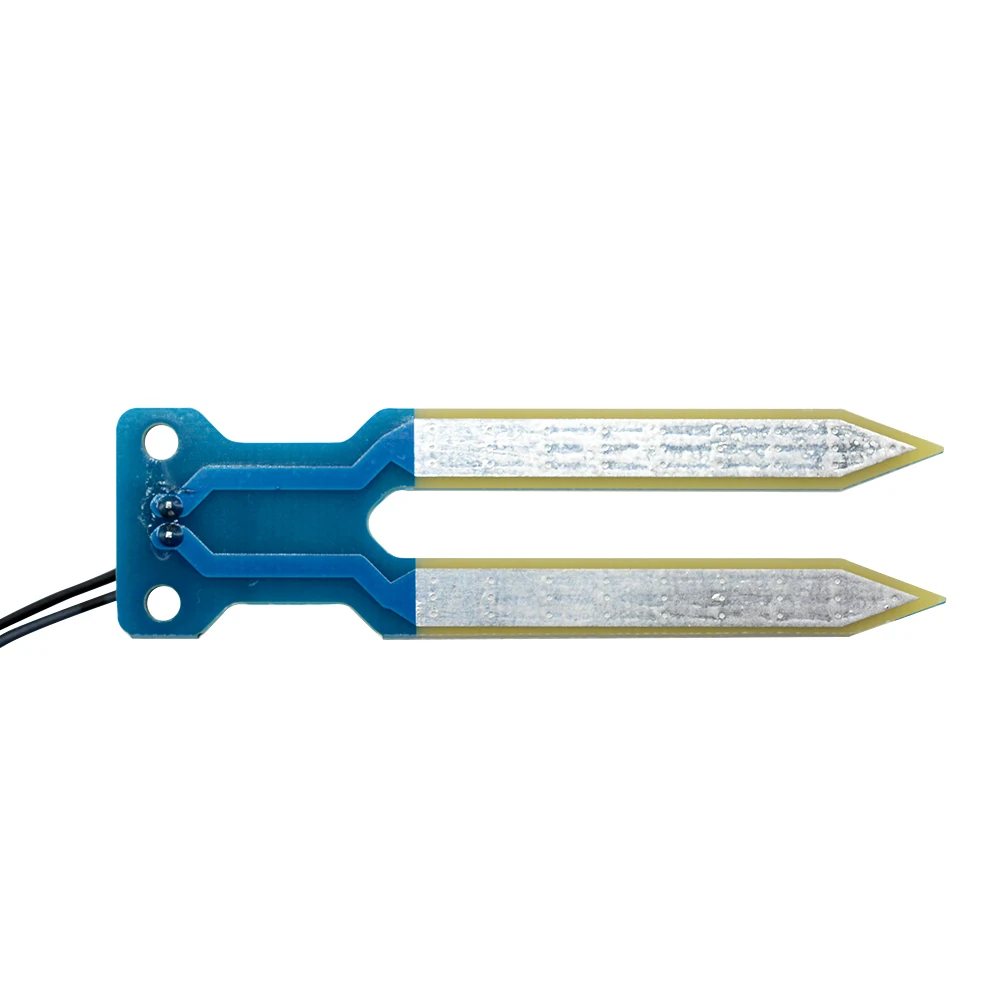

The probe can be inserted directly into the ground.
it is a digital display of soil moisture.
when the humidity is lower than the set value of starting pump starts irrigation,
when the humidity reaches the set value to stop irrigation.
the operation is very simple.
It is intelligent humanization.
Parameters:

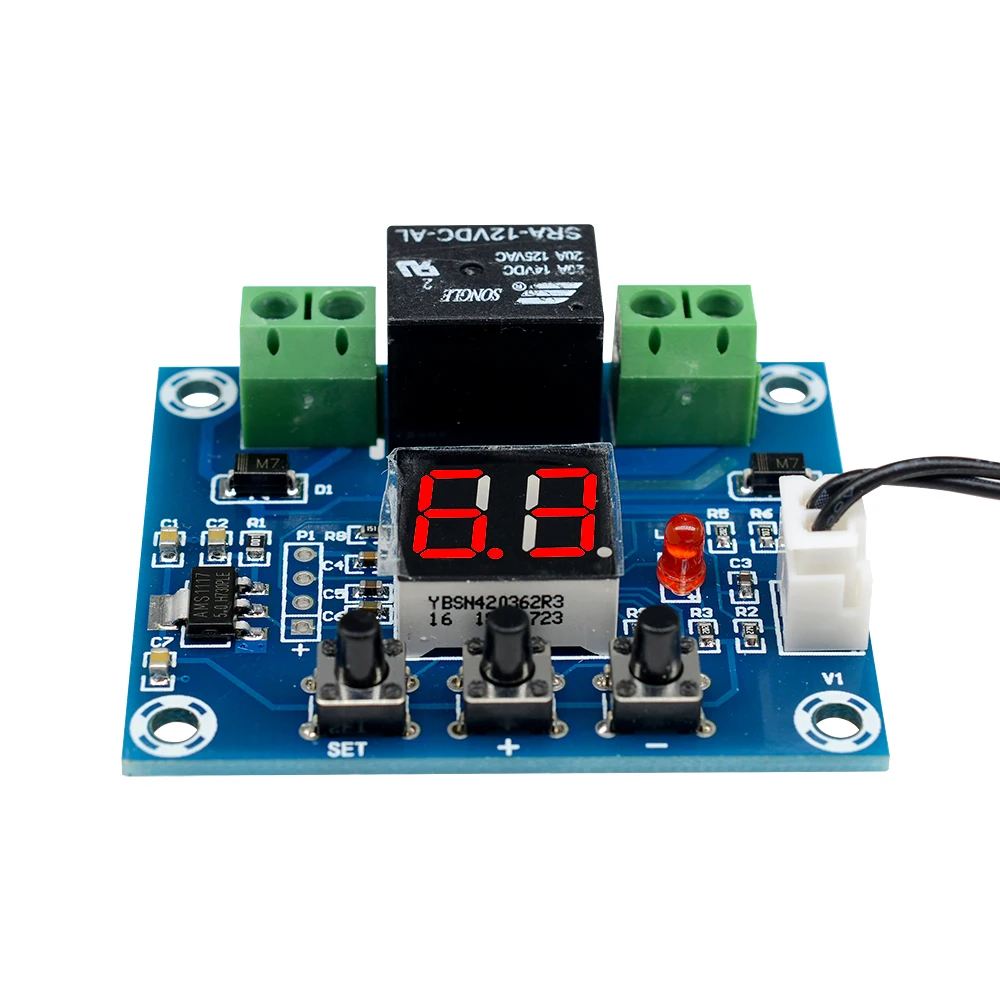

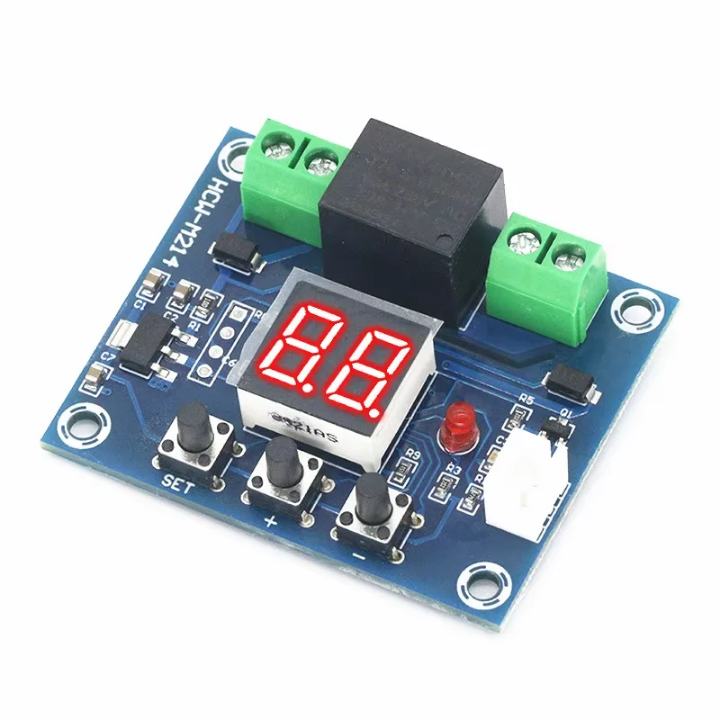

1. Product name: Soil Moisture Control Module

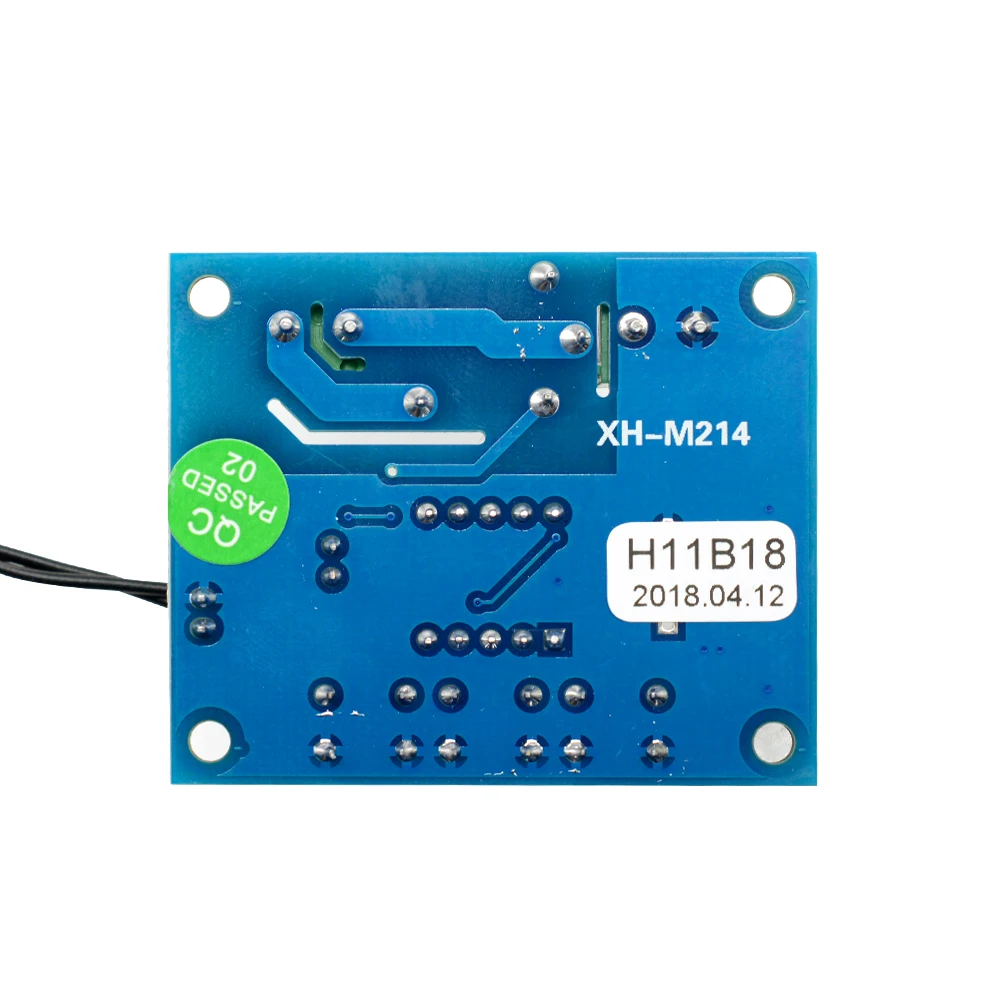

2. Model: XH-M214
3. Supply voltage: DC 12V
4. Output way: Output switch
5. Humidity range: 20-99% RH 6. Control accuracy: 1% RH
7. Current control: 10 A
8. Net weight: About 28g
9. Size: 52 * 43 * 16 mm
Carefully:
please follow the wiring diagram of the description.
You can choose the appropriate wiring mode based on the voltage load you use
1>. F0 setting start humidity (the humidity of the solenoid valve or the pump start working) press the “SET” button to display “F0” and press the “SET” button to display the beginning of humidity, and press + / button for “SET” the humidity value
2>. F1 setting stop humidity (the humidity of the solenoid valve or the pump stops working) press +/- button to switch to “F1”, press the “SET” button to display the humidity value stop, and press + / button to SET the humidity value
3>. F2 correction humidity normal use without error correction. The correction of values in the use of multiple modules at the same time, is conducive to a unified operation operation.
Package Includes:

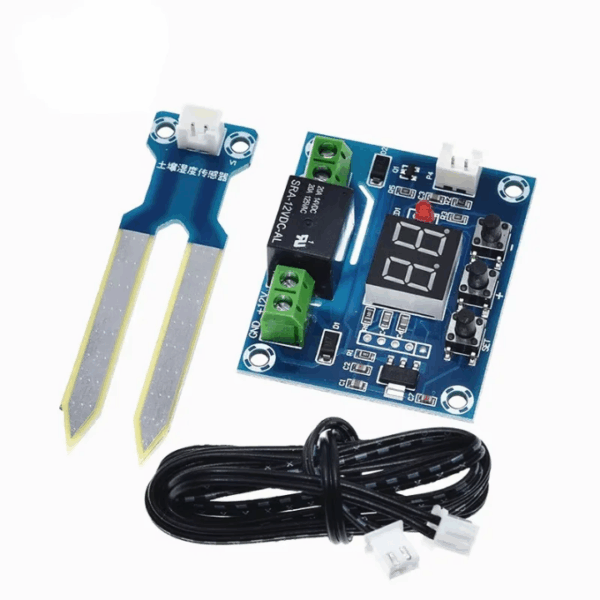

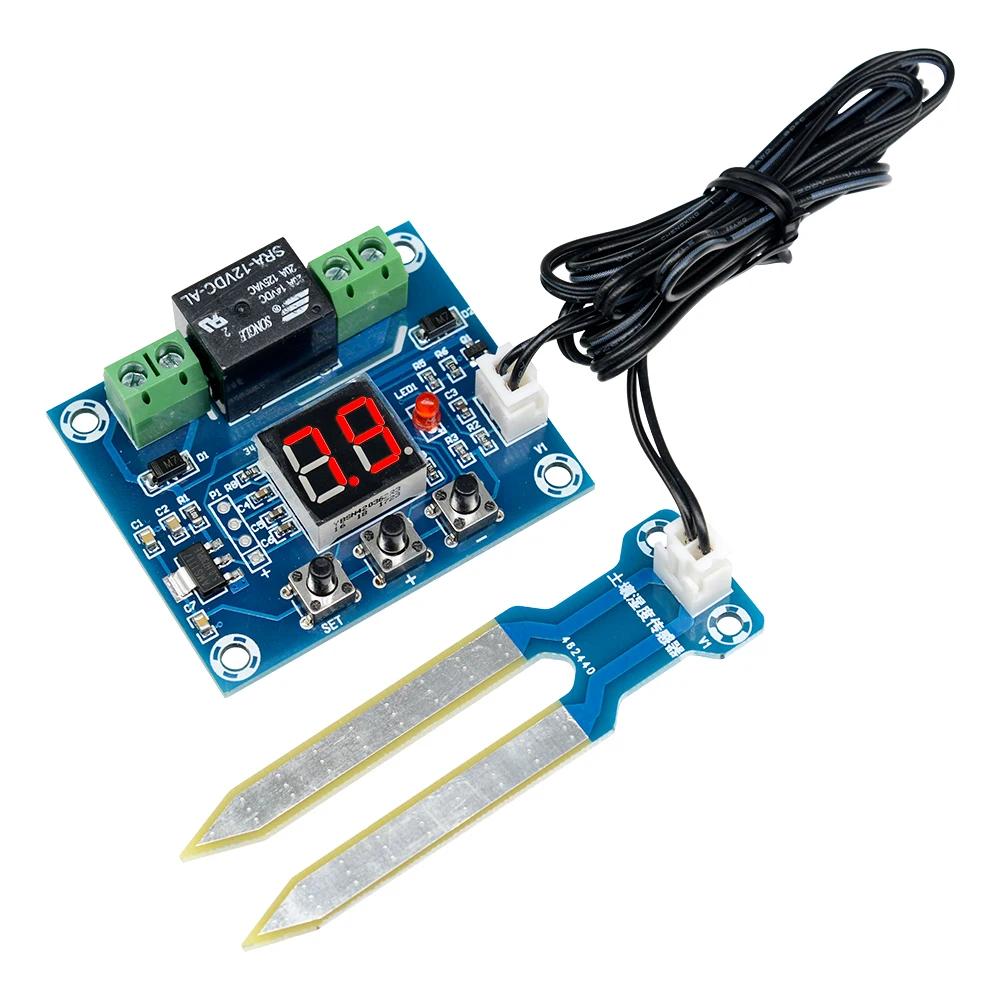

1 *XH-M214 Automatic Soil Moisture sensor moudle
