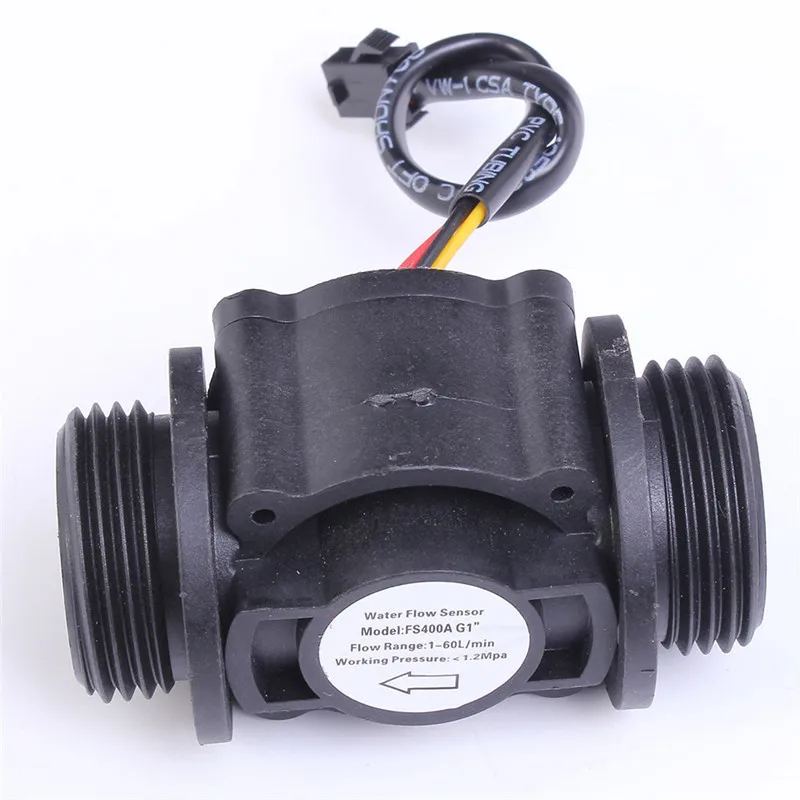

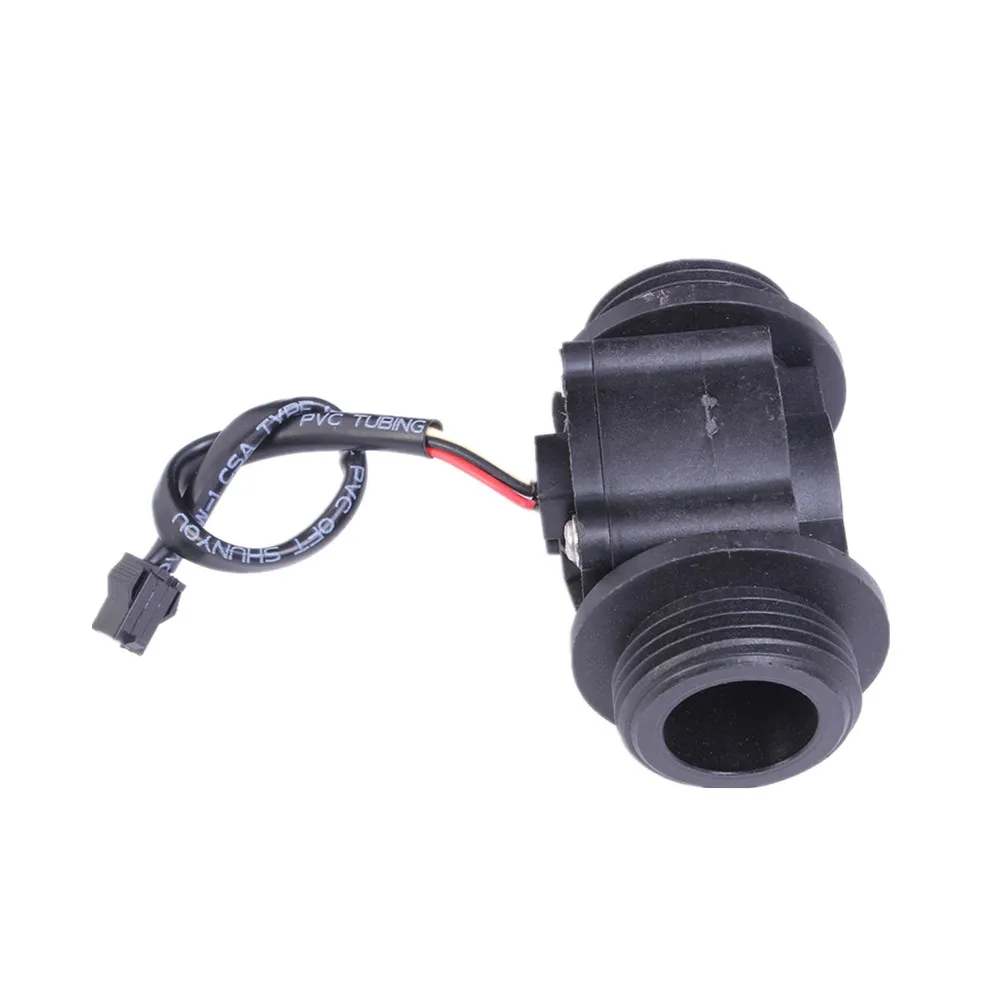

DN25 Water Level Liquid Flow Sensor Flow Sensor Water Controller DC 5-24V Pulse Hall Flowmeter for Flow Measurement Device
Feature:
1. This product is light and flexible in shape, small in size and easy to install.
2. The impeller is set with stainless steel beads and is always wearable.
3. The force under the sealing structure does not leak.
4. Hall elements are imported from Germany and packaged with potting
Waterproof, not aging.
5. All materials meet ROSH test standards
Pin Outs:
Input: Connect positive
Yellow OUT: signal output line
Black GND: connected to the negative
Specification:
1. The lowest rated working voltage DC4.5 5V-24V
2. Maximum operating current : 15 mA (DC 5V)
3. Working voltage range DC 5~18 V
4. Load capacity ≤ 10 mA (DC 5V)
5. Flow range: 1-60L / min (±3%)
6. Flow pulse characteristics: F = (4.8 * Q) Q = L / Min
7. Storage temperature -25~+ 80°C
8. Maintain humidity: 25%~95%RH
