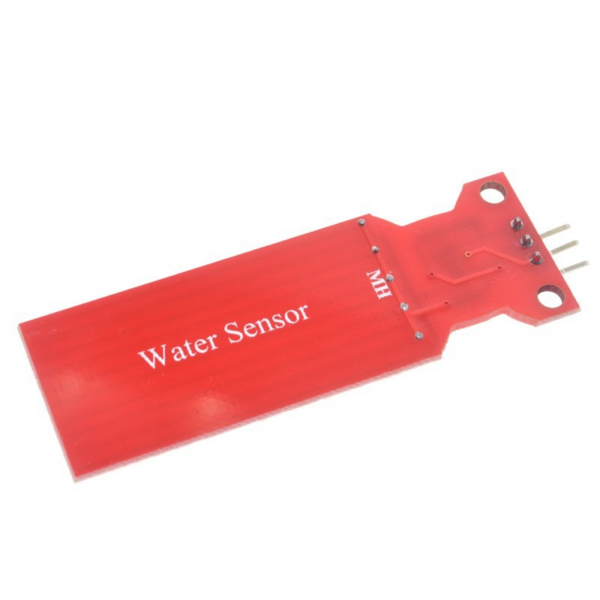

Water Level Sensor Module

This Rain Water Level Sensor is easy to use, cost effective high level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level. Easy to complete water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect

Specifications:
Product Name: Water level sensor
Working voltage: DC3-5V
Working current: less than 20 mA
Sensor Type: Simulation
Detection area: 40mm x 16mm
Production process: FR4 double-sided spray tin
Working temperature: 10 ° C – 30 ° C
Working humidity: 10%-90% non-condensing
Product weight: 3.5 grams

Product size: 62mm x 20mm x 8mm

Package Includes:

1* water Level Sensor Module
