Description:
1. Adopt 110/220v 50hz power supply with power of 30w；;
2. Turn on the power supply and preheat for 3-5 minutes;
3. Press the piston handle and align the tin suction nozzle with the weldment; After the tank melts, press the control button and the weld is sucked into the cylinder;

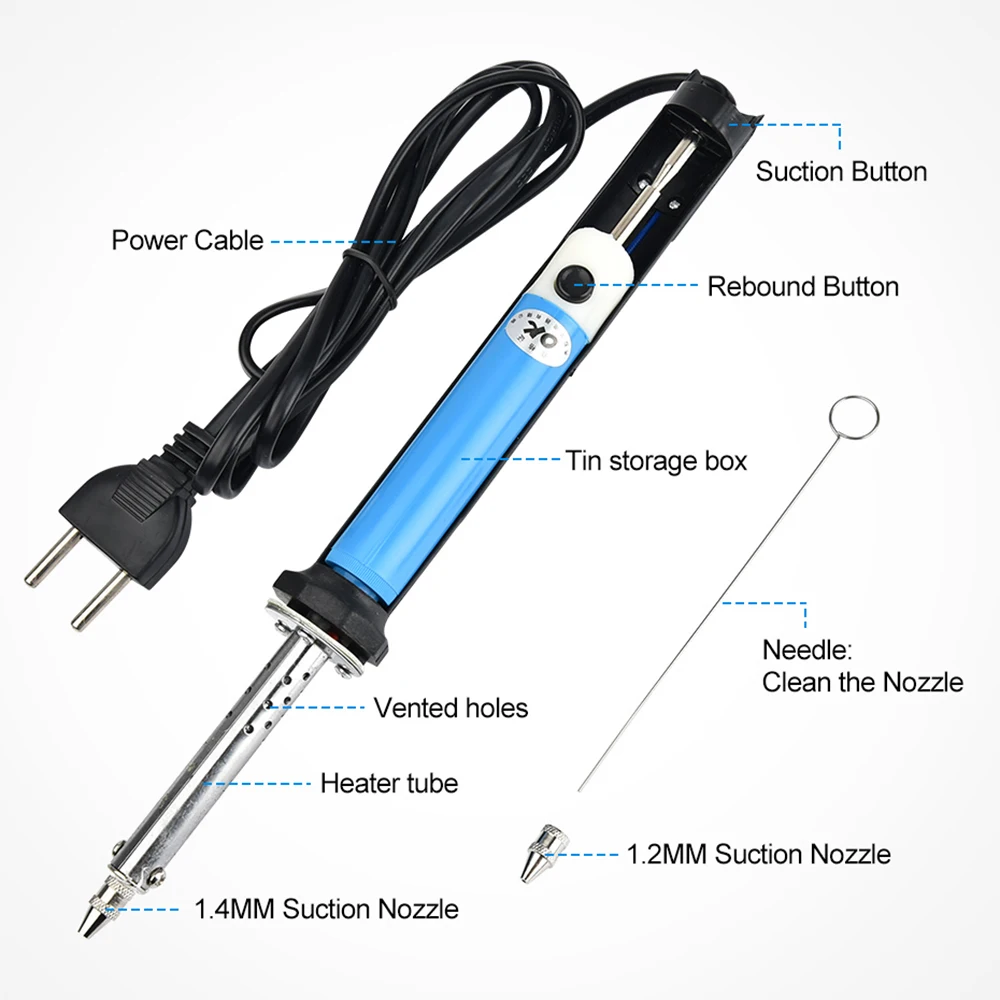

4. The can suction device is equipped with two suction nozzles with different diameters, depending on the thickness of the lead part;
5. When welding, the operation is the same as that of soldering iron; Welding and tin absorption dual-purpose
6. When disassembling the cylinder, press down the top of the cylinder in the direction of the arrow, and pull the cylinder and handle at the same time, and the cylinder can be separated; When removing the suction nozzle, rotate the suction nozzle counterclockwise and remove it;
Specifications:
Working voltage: ue plug 220v, usa plug 110v, 50hz.
Heater power: 30w
Electromagnetic power: 350w (instantaneous)
Insulation grade: E grade
Working mode: continuous
Material: plastic, metal
Color: blue
Size: 245mm*30mm (length and width)

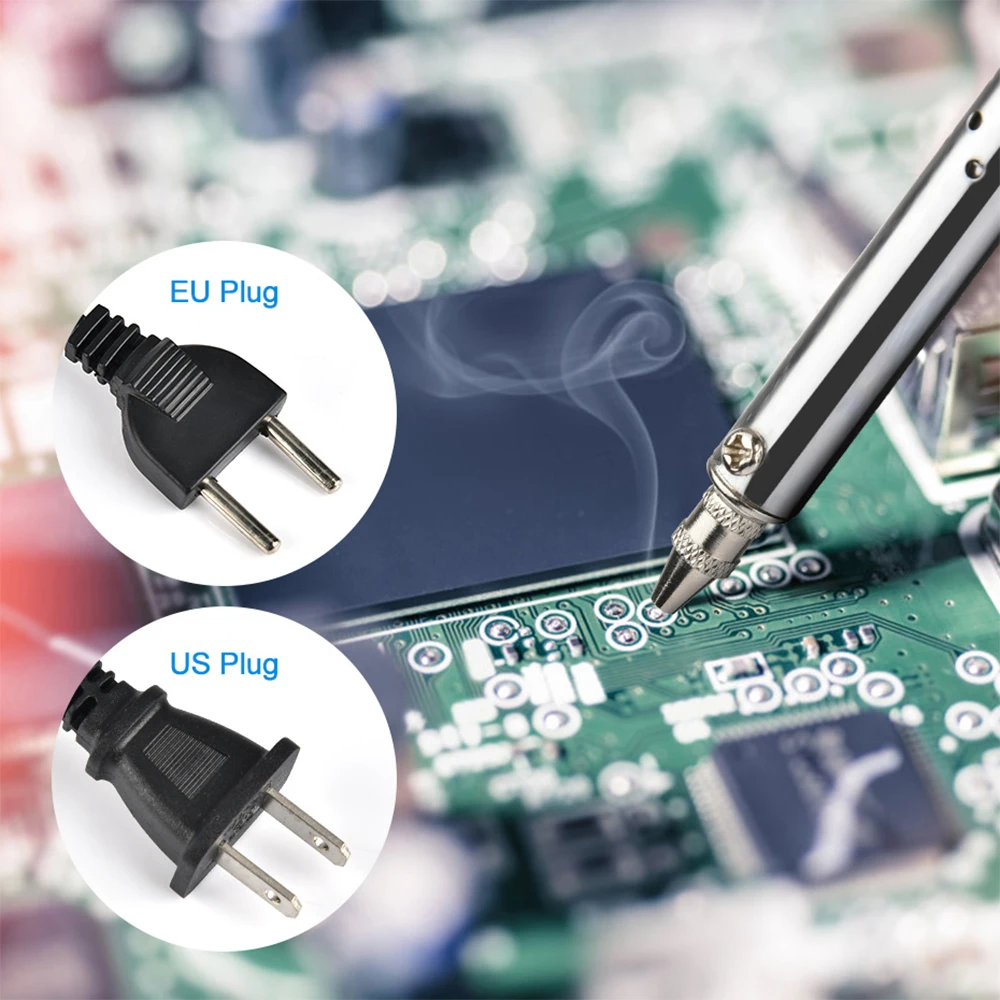

Specification: European standard, American standard
Notes:
1. Ensure the voltage is consistent. Too high or too low voltage is not conducive to use;
2. Before use, tighten the cylinder and suction nozzle to prevent leakage. Otherwise, it will affect the suction.
3. Always clean the welding impurities in the suction nozzle and cylinder, and add a small amount of oil to the piston;
4. After each use, push the piston for 3-4 times, move the residual straw to the suction nozzle, and then use the straw smoothly;
5. It is forbidden to install and remove some electrical components of the suction tank device when it is opened.
6. It is normal to generate a small amount of smoke due to heating when using a new tin absorption pump for the first time. It will disappear naturally in ten minutes.
7. When in use, it should be equipped with a naturally cooled soldering iron base, and put the suction pen on the soldering iron base.
8. Before replacing welding parts or welding nozzles, please turn off the power supply and wait for the temperature of welding nozzles to cool before operation.
9. This product has a grounding wire and should be used with a socket with contacts. Please pay attention to safety.

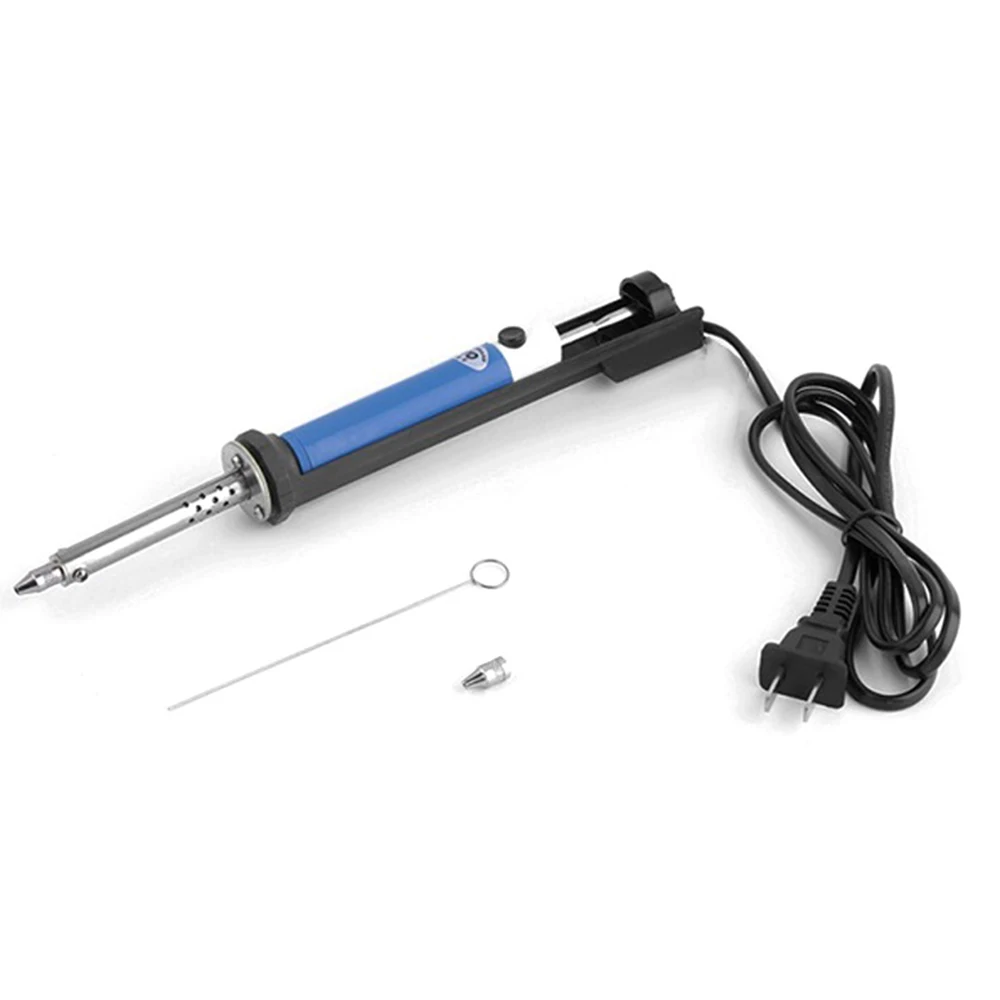

Package Include:
1* Vacuum welding tin pump
1* Extra nozzle
1* Drill pipe
