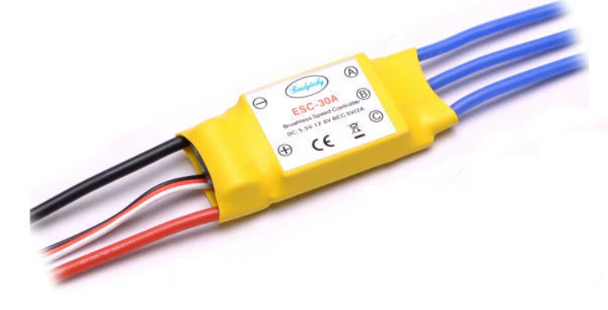

30A Brushless Motor Speed Controller ESC

Description:

A Electronic Speed Controller(ESC) for Brushless DC Motors.This ESC is specifically made for quadcopters and multirotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs.

This ESC can drive motors which consume upto 30A current. It works on 2S-3S LiPo batteries. It has an onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. It can be used to control our brushless motors with a 2S-3S LiPo (make sure motor doesn’t draw more than 30A).

Specifications:

• Running current: 30A
• Output: Continuous 30A
• Input Voltage: DC 6-12.6V (2-3S )
• BEC: 5V 2Amp.
• Has Low Voltage Protection Mode

Notice: this 30A can not be programmed , because we have programmed it when producing .

Package Included:

• 1Pcs 30A Brushless speed controller
