Features:
1. The product is wirelessly controlled by Bluetooth, which can be controlled by mobile phones or other terminals with Bluetooth devices, which is convenient for users to operate;
2. The product can be widely used in the Internet of Things, smart home, smart equipment and other fields
3. It has strong anti-interference ability and adopts diode freewheeling protection;
4. The relay contact part adopts double-sided thick wiring, and has physical wire slot insulation, which can be used for large current to pass through, which is safe and reliable;
5. Using high-quality Songle relays, quality assurance;
6. Both input and output use 5.00mm high-quality terminal blocks, which is more convenient for wiring and suitable for PLC control;
7. The input terminal can be arbitrarily set high and low level trigger, the control method is more flexible;
8. Each relay has a pull-in indicator light, and the working status of the relay is clear at a glance;
9. Each relay output leads to two groups of normally open and normally closed electric shocks, which is convenient and flexible to use;
10. There are fixing screw holes for easy installation;
11. The finished product passes 100% function test and stability test;
Specifications:

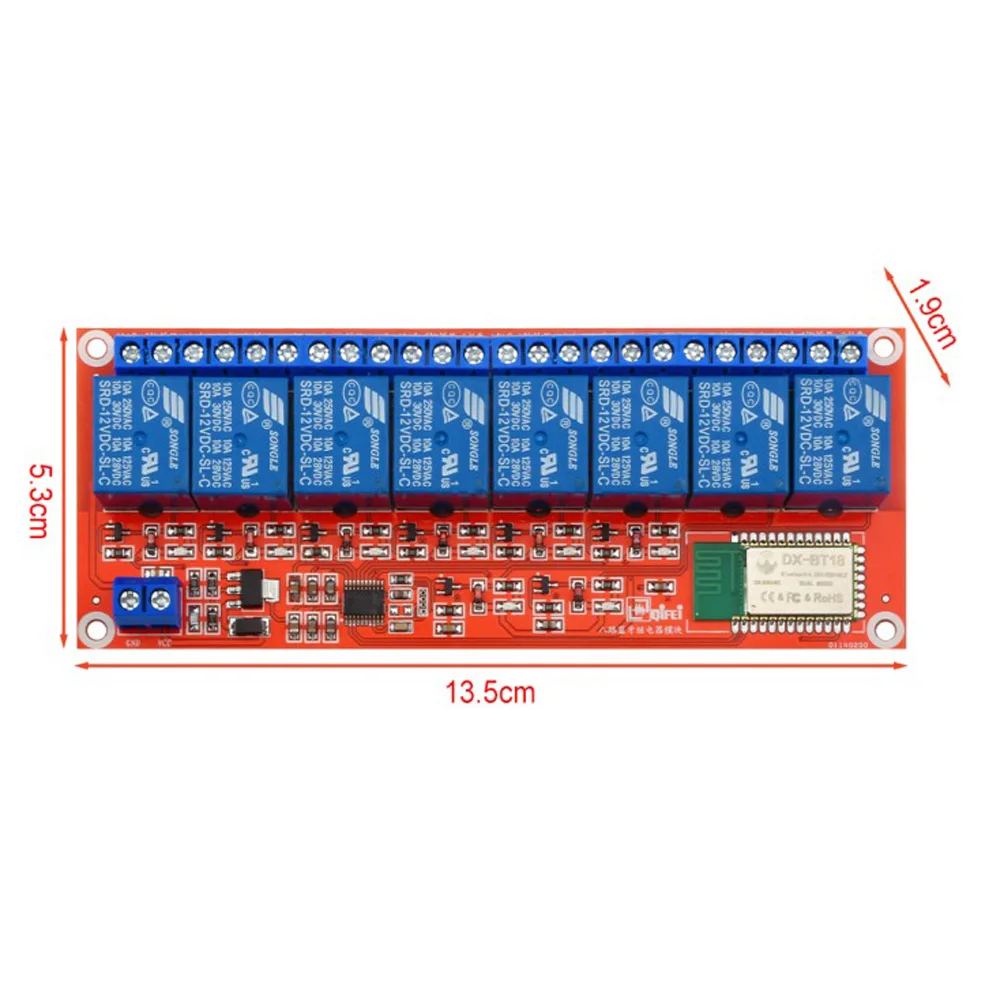

1. Dimensions: 135(L)*53(W)*19(H)mm;
2. Relay contact capacity: AC250V 10A DC30V 10A;
3. High level trigger current>10mA;
