Specifications:
Temperature range :-50℃-110℃
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution: When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
Control accuracy: 0.1℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection: 0℃-110℃
Supply voltage: DC 5V 12V 24V
Output voltage: DC 5V 12V 24V
Measurement input: NTC (10K 0.5%) Waterproof Sensor

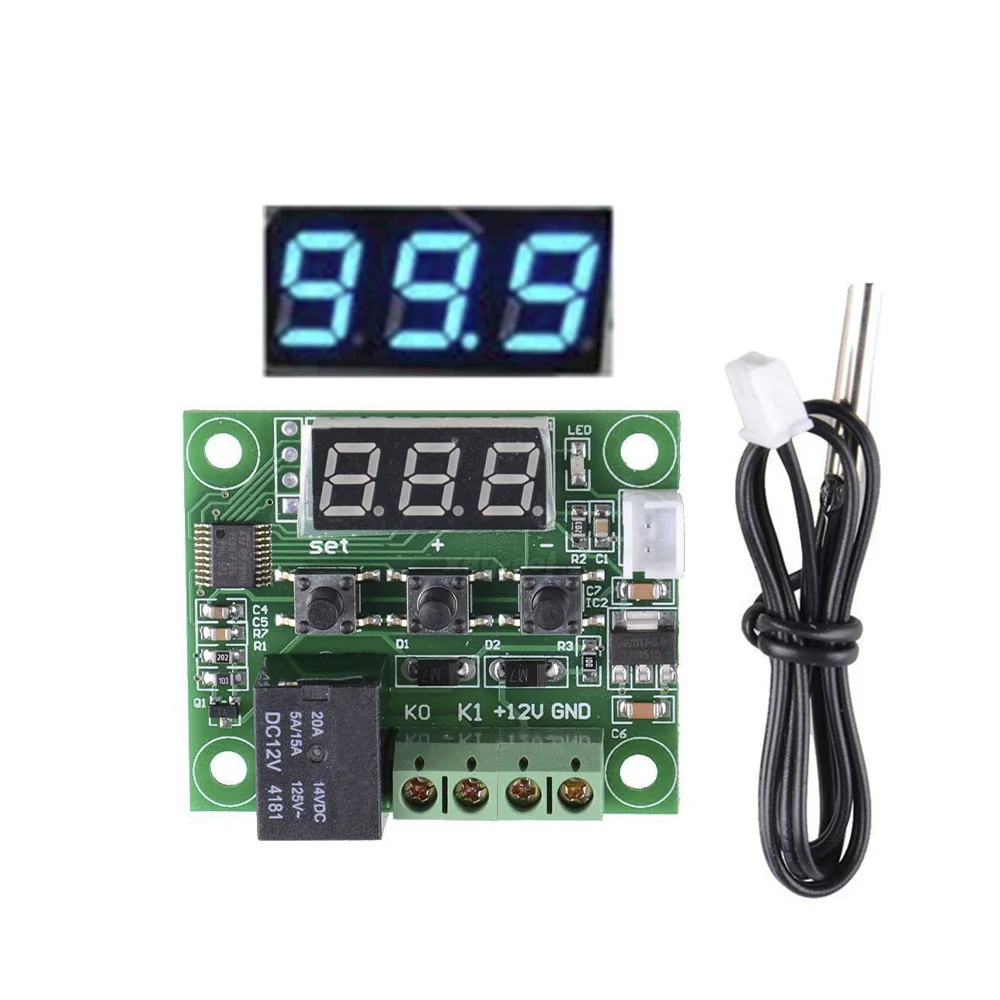

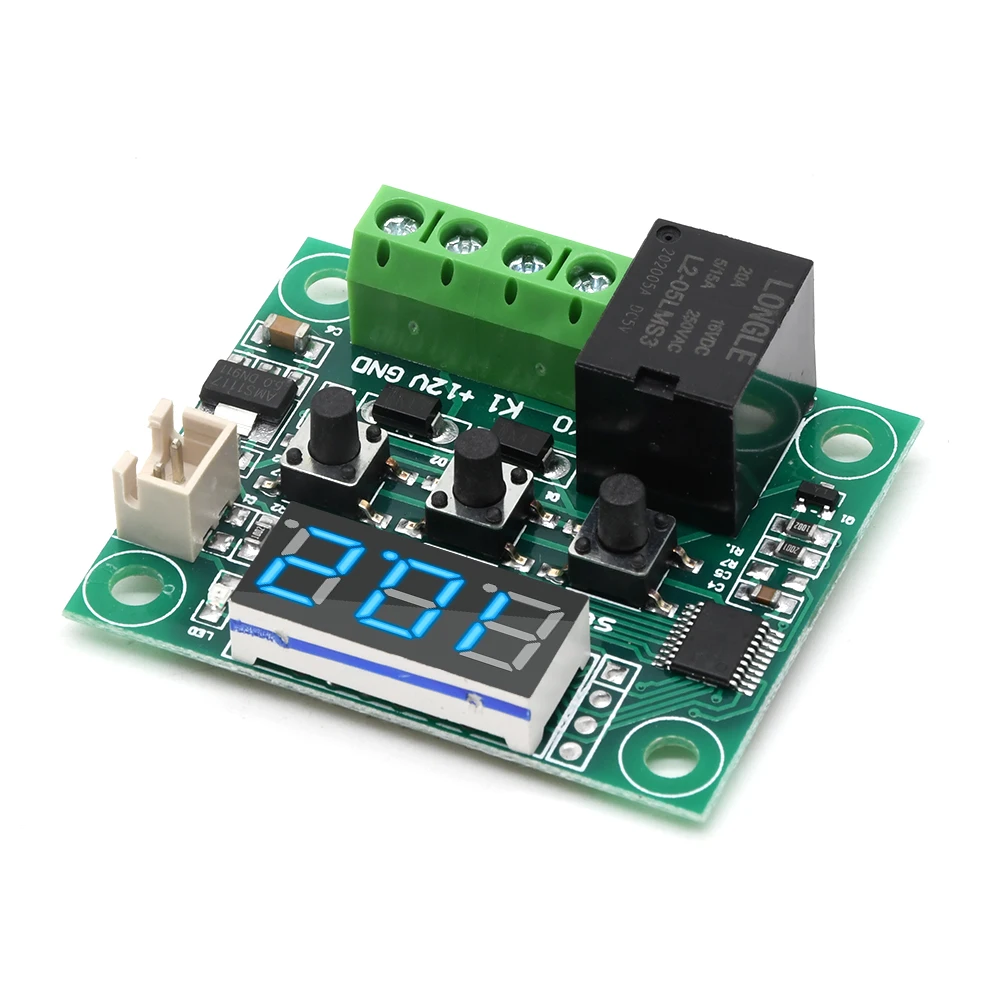

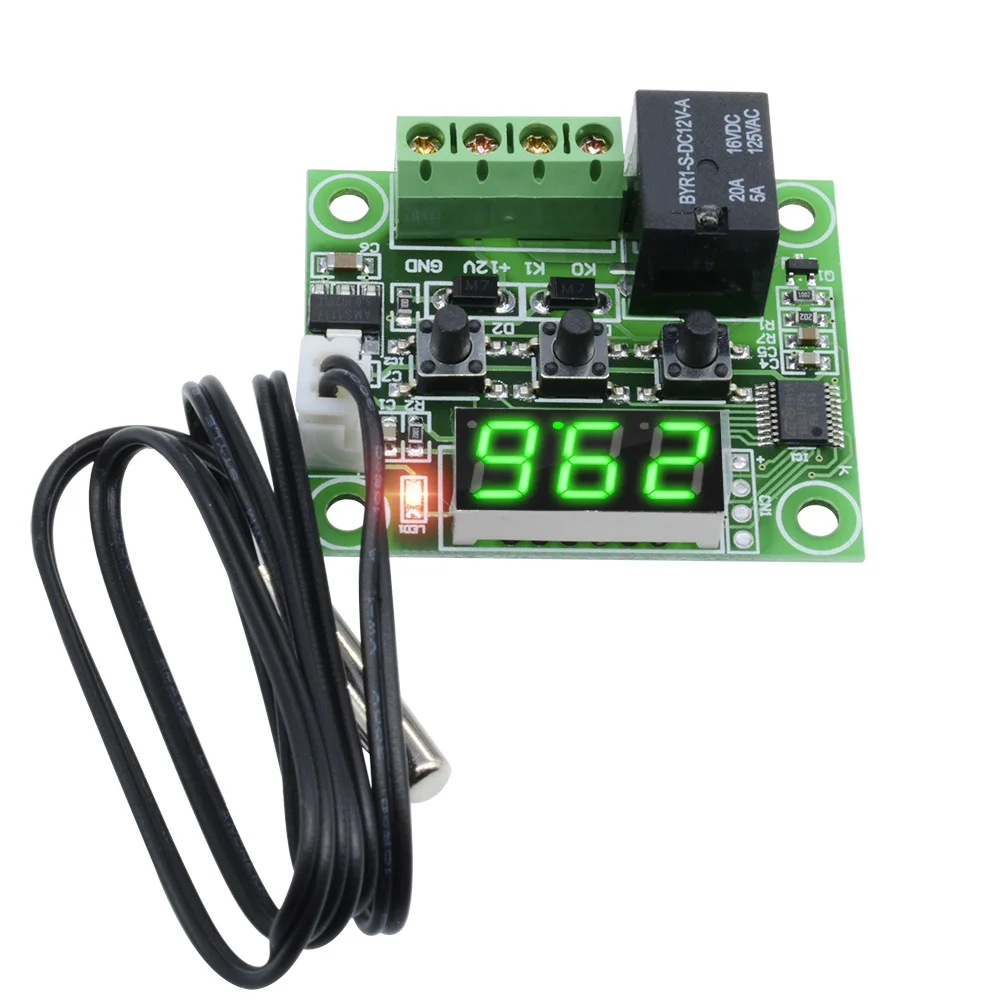

Color of the LED:Blue, Green, Red
Environmental requirements: -10℃ ~ 60℃,Humidity 20% -85%
Temperature range :-50℃-110℃
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution: When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
Control accuracy: 0.1℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection: 0℃-110℃
Supply voltage: DC 5V 12V 24V
Output voltage: DC 5V 12V 24V
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Color of the LED:Blue, Green, Red
Environmental requirements: -10℃ ~ 60℃,Humidity 20% -85%
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press – to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close
the relay, the display — as high temperature protection.
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press – to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close
the relay, the display — as high temperature protection.
Package Include:

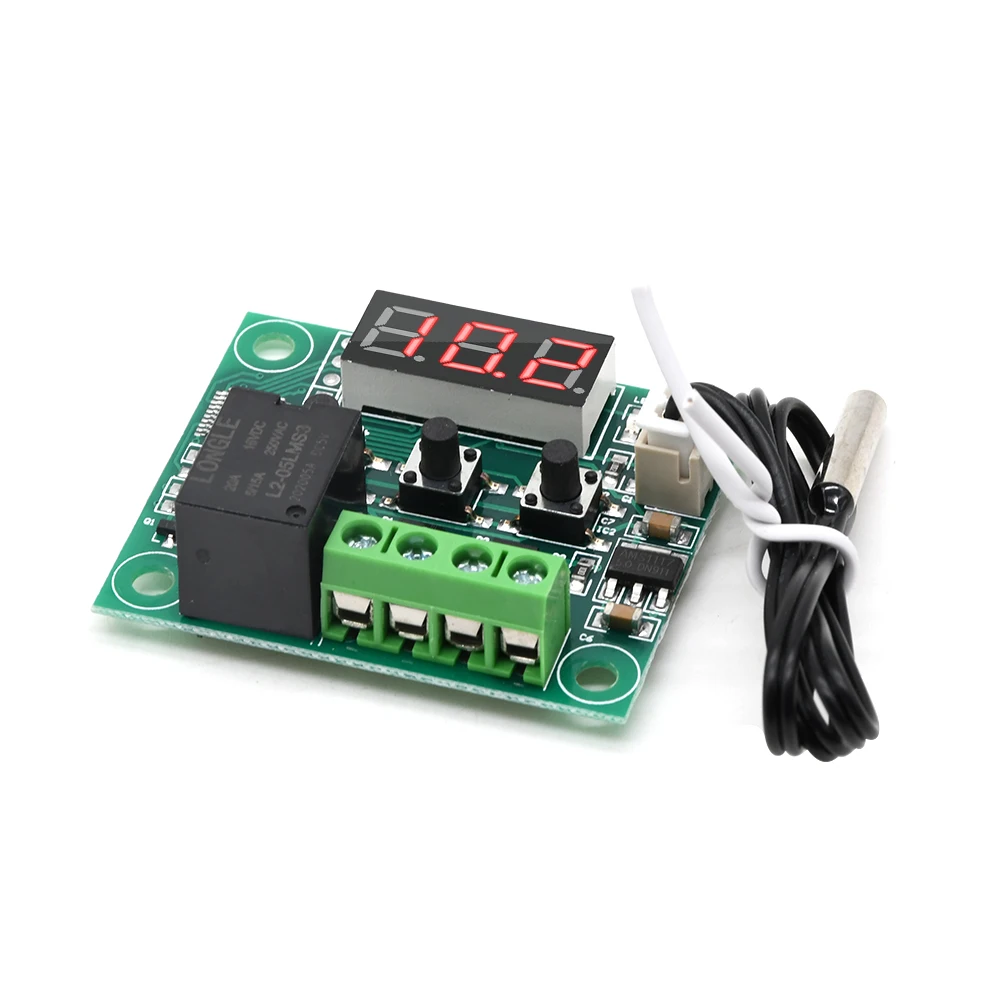

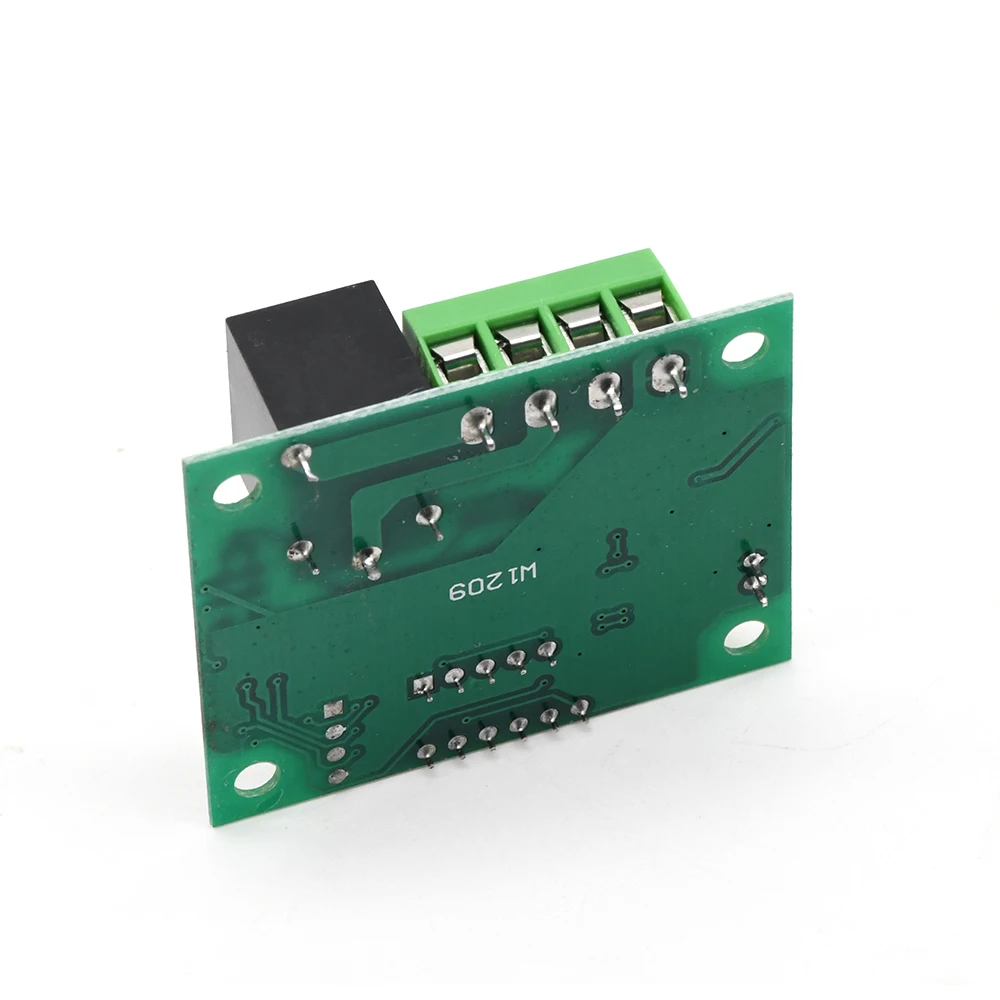

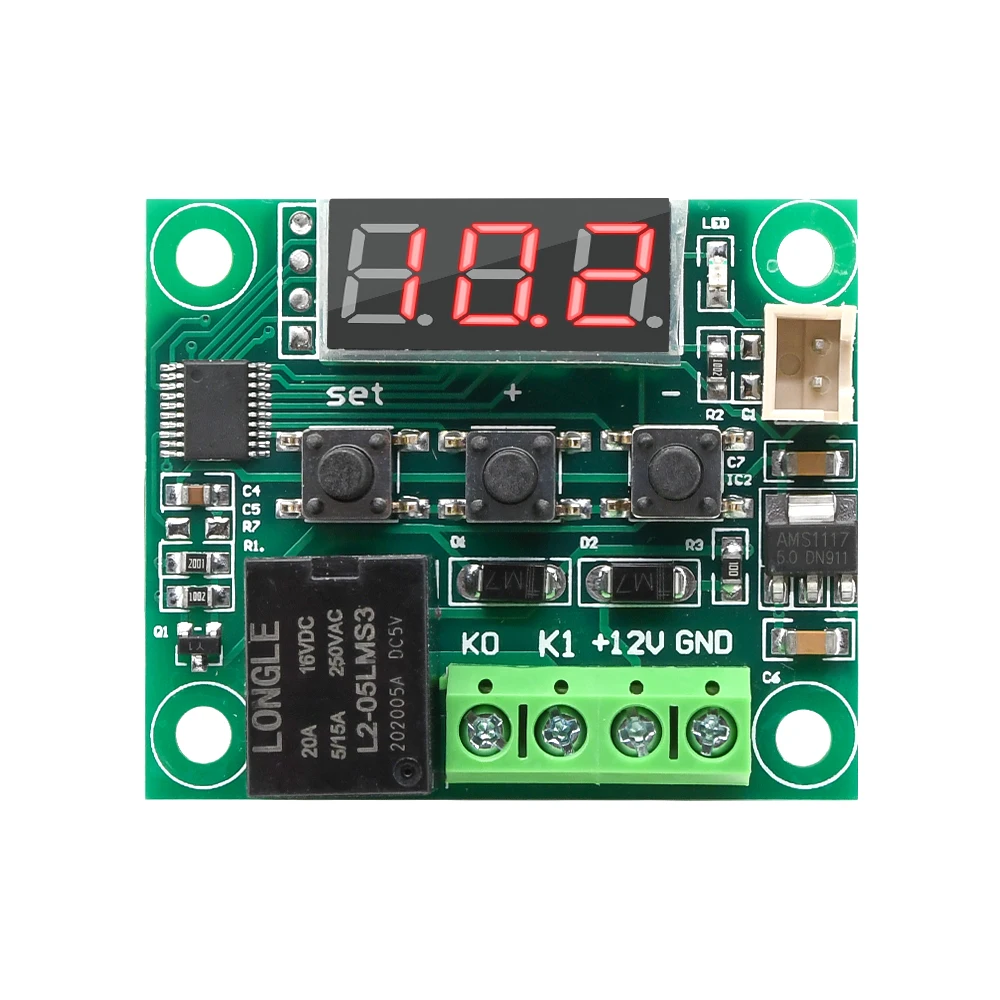

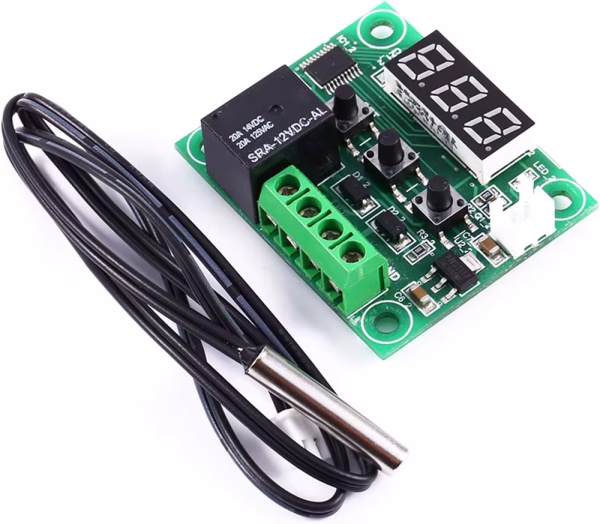

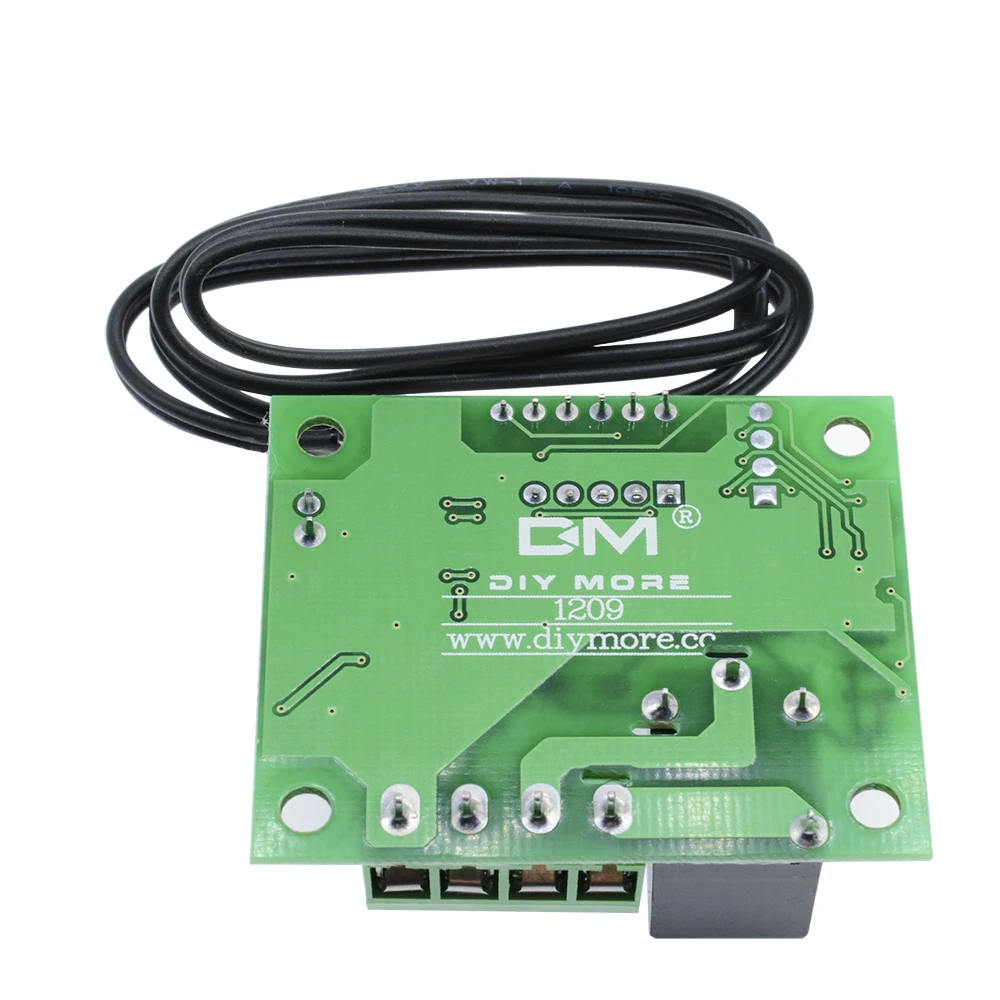

1*W1209 DC 12V Temperature Controller Moudle
