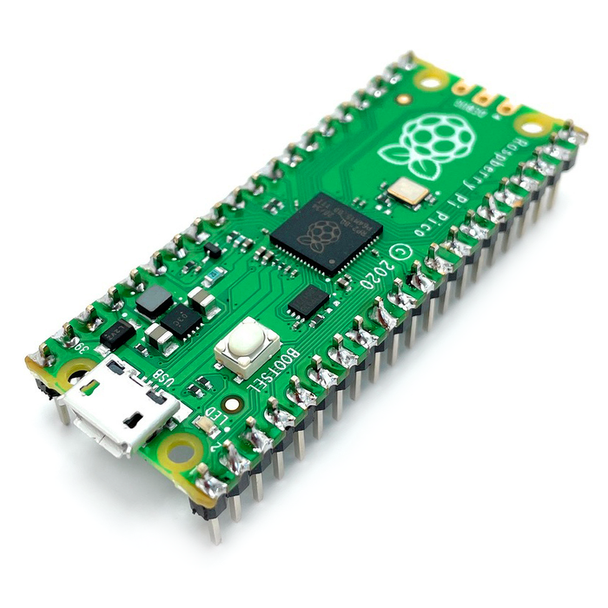

Raspberry Pi Pico H board

Description:

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces. The Raspberry Pi Pico features two ARM Cortex-M0+ cores run up to 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage. In addition to powerful hardware resources, Pico has rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK. Just click https://pico.raspberrypi.org/getting-started/ to get started with Raspberry Pi Pico. Pico has been designed to use either soldered 0.1″ pin-headers (it is one 0.1″ pitch wider than a standard 40-pin DIP package) or can be used as a surface-mountable ‘module’, as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow soldered SMT module.

Specifications:
Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz

264KB of SRAM, and 2MB of on-board Flash memory

Castellated module allows soldering direct to carrier boards

USB 1.1 Host and Device support

Low-power sleep and dormant modes

Comprehensive C/C++/Micropython SDK, software examples, and documentation

Drag & drop programming using mass storage over USB

26 × multi-function GPIO pins

2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

Accurate clock and timer on-chip

Temperature sensor

Accelerated floating-point libraries on-chip

8 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications:

• Control Chip: RP2040
• Flash: 2MByte
• USB Port: Micro-USB
• Power Supply: USB-5V;VSYS-1.8V-5.5V
• Supply Voltage: 5V
• Output Power: 5V/3.3V
• GPIO Level: 3.3V
• Working Current: <=300mA
• Numbers of Pins: 40 Pins
• ADC Accuracy: 12bit 500KPS ADC
• Language: MicroPython;C;C++
• Environment: Visual Studio Code;
• Eclipse Size: 51*21mm

Package Included:

1* Raspberry Pi PICO development Board
