Features:

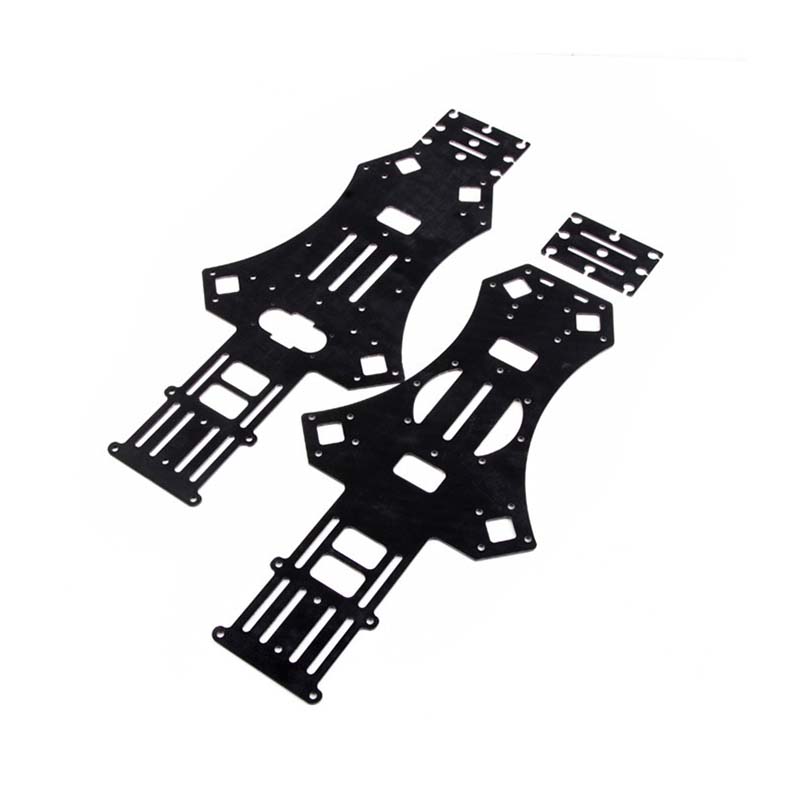

– Center lower plate: 1-4pcs 45 * 45mm flight control board (FF, kk, rabbit, pirate, MWC, etc.)
– With Extend board, the ESC parallel plates or 4-in-1 ESC can be installed on it.
– With mounting holes for Wireless Transmitter ,CCD,OSD,GPS antenna,special design for installing NAZA flight control (long hole left for battery band to fix the controller), holes for tall landing skill.
– 2200 mAh battery can be fixed at the end of the lower plate.
– Center upper plate: with cross holes for mounting NAZA GPS and aluminum mounting plate (38 * 38/33 * 33) in front of it for FPV camera.
– Transmitter or remote control receiver and other components can be set at the end of the plate.

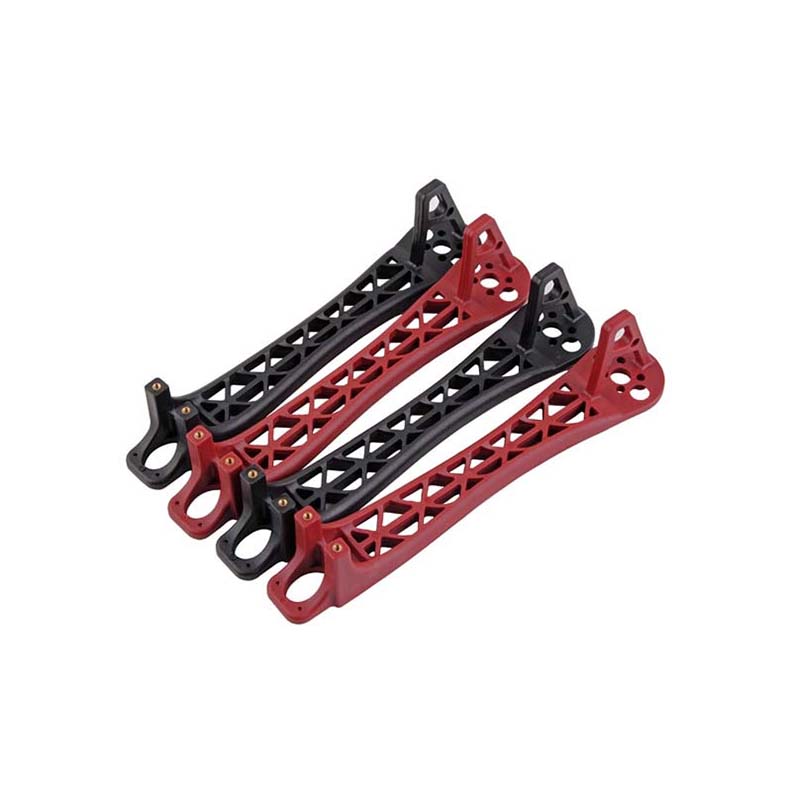

– Arms: similar arms with F450, F550
– Biggest propeller can be used: 12-inch, usually we use 10.11 inch ones
– Recommended motor: 2212.2216.4006.5005
Specification:
– Wheelbase:500mm
– Min Arm distance:380mm
– Max Arm distance:480mm
– Material: Glass fiber ABS Plastic
– Color: Black+ White/Red+ White/Black+Red
– Weight:485g
Package Includes

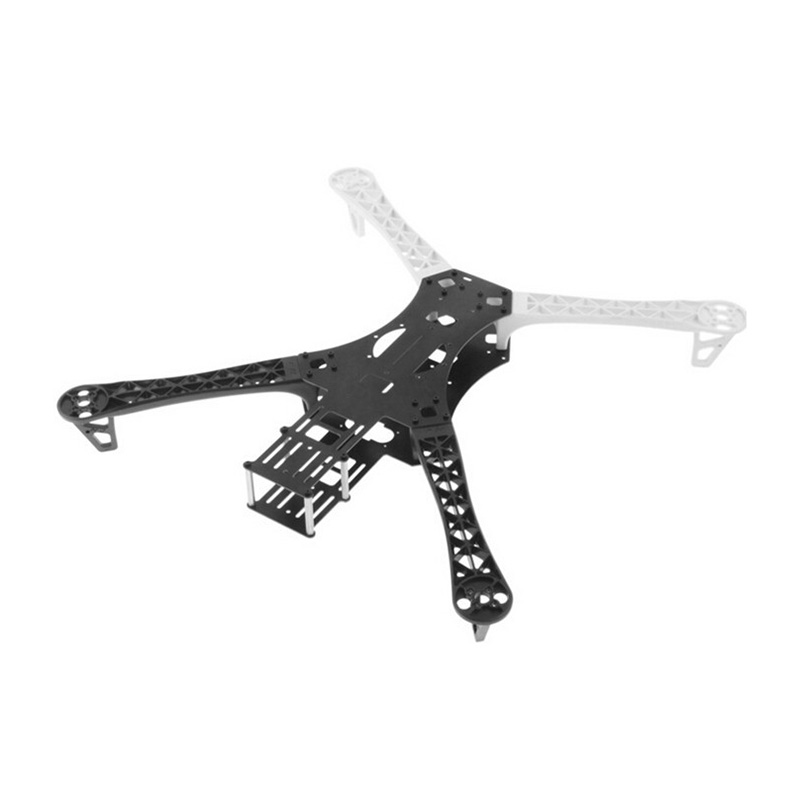

1pc x Alien Quadcopter Frame Kit HJ MWC
