Features:
Aluminum alloy shell is durable with high strength.
Bearing has high rotating speed, low noise, high precision and long service life.
Single thick wire winding provides high power to fly fast during racing.
Suitable for 60mm 70mm 80mm 90mm 100mm or other mini FPV racing quadcopters.
Titanium alloy shaft with high precision processing and dynamic balancing testing ensure smoothness.
Specification:
Stator Diameter: 11mm
Stator Thickness: 6mm
No. of Stator Arms: 9
No. of Stator Poles: 12
Motor KV: 4000KV
No-Load Current(11.1V): 1A
Motor Resistance: 13mΩ(Ref)
Max Continuous Current: 15A
Max Continuous Power: 110W
Outsize Diameter: 14.2mm
Body Length: 13.6mm
Max Lipo Cell: 3-4S
Support ESC: 15-20A
Recommended Prop(inch): 2035*4/3020*2
Package Include:

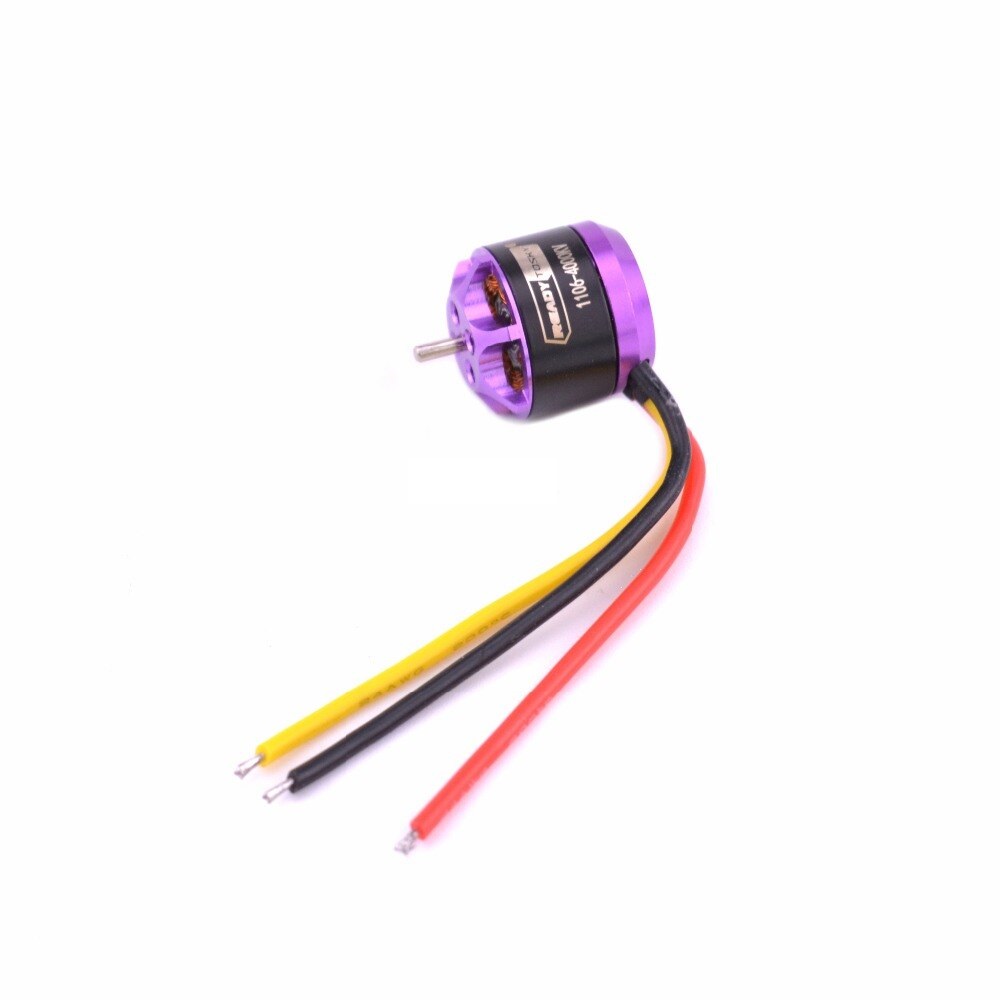

1PCS 1106 4000KV Motor
