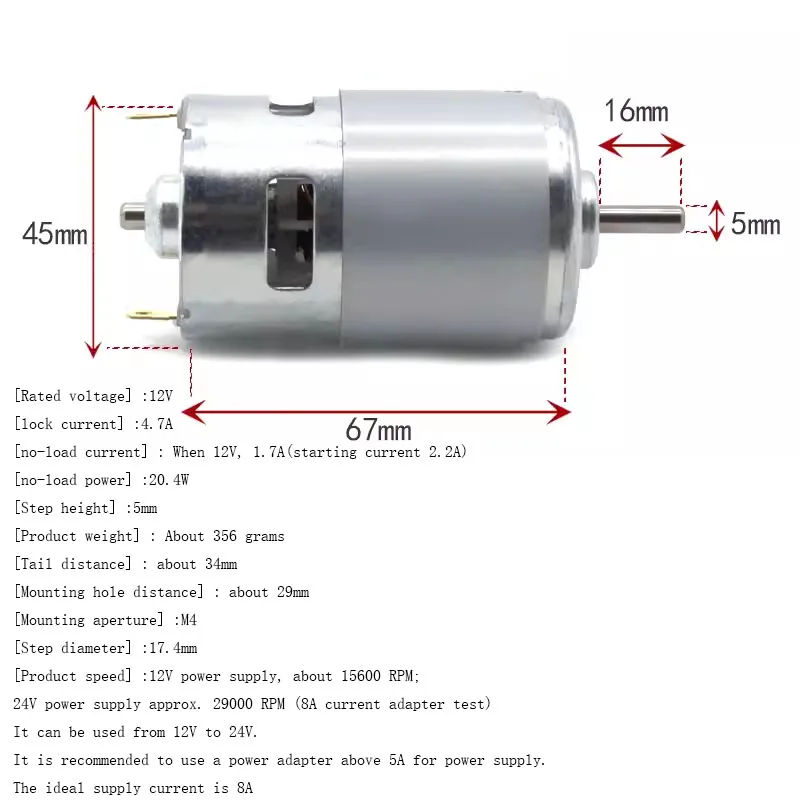

Specification:
Rated voltage: 12V
No-load current: At 12V,1.7A (start current 2.2A)
Stall current: 4.7A
No load power: 20.4W
Product speed: about 15600 r / min
Motor diameter: 45mm
Step height: 5mm
Step diameter: 17.4mm
Motor length: 67mm (without shaft)
Axis diameter: 5mm
Motor shaft length: 16mm
Tail pitch: about 34mm
Installation distance: about 29mm
Installation aperture: M4
Different voltage parameters:
DC 12V, current 0.14A, speed 15600RPM
Features:
The front is ball bearing and back-end is copper
5 groups winding
At a voltage of 12V-24V , large torque, low noise
Package included:
1 x 775 Motor
