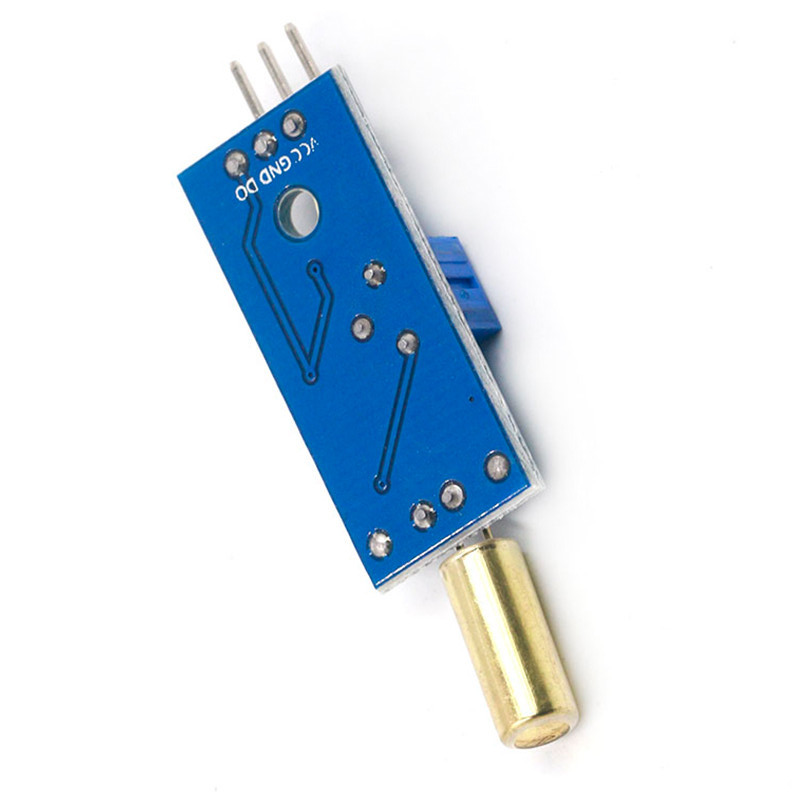

SW-520D Tilt Sensor Module

Features:
1.Using the highly sensitive angle switch SW-520D as the sensor.
2. Comparator output, clean signal, good waveform, strong driving ability, more than 15mA.
3. Working voltage 3.3V-5V
4. Output form: digital switch output (0 and 1)
5. With fixing bolt holes for easy installation
6. Small board PCB size: 3.2cm x 1.4cm
7. Use wide voltage LM393 comparator
Module instructions
1. For the wiring of this module, please see the wiring diagram below for detailed instructions;
2. The switch output of the module depends on the on and off of the angle switch. When the angle switch is off, DO outputs high level, and when the angle switch is on, DO outputs low level;
3. The output terminal can be directly connected with the single-chip microcomputer, and the high and low level can be detected by the single-chip microcomputer, thereby detecting the angle change;
4. The output terminal can directly drive the relay module, which can form a high-power angle switch to protect electrical equipment and other products from automatically powering off when they fall.

Package includes:

1* Vibration Tilt Sensor Module
