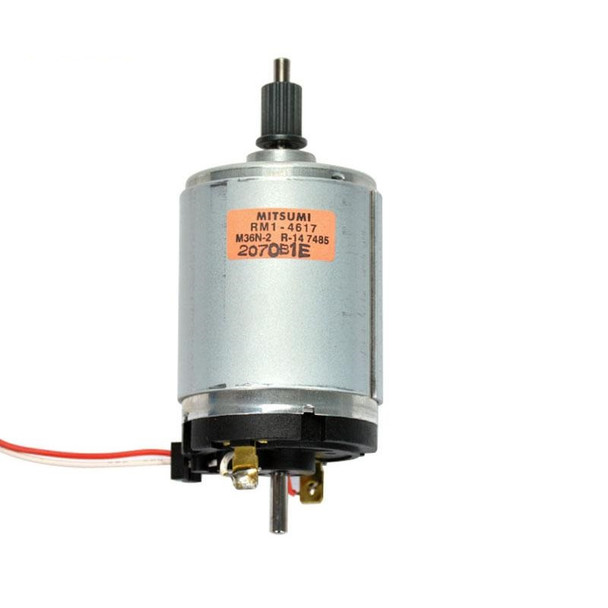

Original Japan Mitsumi printer drive, good workmanship, excellent quality, as it is multi-turn High Torque DC motor, drive motor can do, but it can also be used for generators.
As the drive motor, available printers, low-power tools, such as small electric drill, or Travel Electric Model.
As a generator it can be used for pedagogical experiments, such as direct drive electricity generation or reverse gear, personal DIY hand, wind or hydroelectric power. (Note: these brush motor power generation efficiency is relatively low, practicality is not limited to the experimental nature.)
Specifications
As drive motor parameters
Rated voltage: 24V
Operating voltage: 6-24V
No load speed: 4500 RPM
Charging current: 100mA
Operating voltage: 6-24V
No load speed: 4500 RPM
Charging current: 100mA
As a parameter generator
Maximum output voltage: DC20V
Maximum output current: 500mA
Maximum output power: 5W
Maximum working speed: <6000 RPM
Engine Size (545)
Motor length: 59mm
Shaft total length: 88mm
Motor Outer Diameter: 38mm
Motor shaft: 3.17mm
Output shaft length: 18mm
Motor weight: 193g
Out line: 130mm
Motor output voltage is related with speed , the higher the speed, the higher the output voltage.
Can be used below 12V LED lamp lighting, mobile phone charge, bicycle power supply, scientific
experiments and inventions, outdoor power supply, and other purposes.
Package include:
1 X 545 DC12V-38V generator
