Features;
100% brand new and high quality
BME280, the precision sensor from Bosch, is soldered onto PCB.
Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
BME280, the precision sensor from Bosch, is soldered onto PCB.
Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Specifications:
Supply Voltage: 1.8 – 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Resolution:
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa
Supply Voltage: 1.8 – 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Resolution:
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa
Accuracy:
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa
I2C address:
SDO LOW : 0x76
SDO HIGH: 0x77
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa
I2C address:
SDO LOW : 0x76
SDO HIGH: 0x77
ME-BME280 is a Breakout Board featuring a Sensortec ME280 Temperature, Humidity & Pressure Sensor.
The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1!
BME280
Features:
Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
VDDIO interface voltage range: 1.2 V to 3.6 V
Current consumption 1.8 uA @ 1 Hz humidity and temperature
2.8 uA @ 1 Hz pressure and temperature
3.6 uA @ 1 Hz humidity, pressure and temperature
0.1 uA in sleep mode
Operating range -40…+85 C, 0…100 % rel.
humidity, 300…1100 hPa-
Humidity sensor and pressure sensor can be independently enabled/disabled
Package Included:

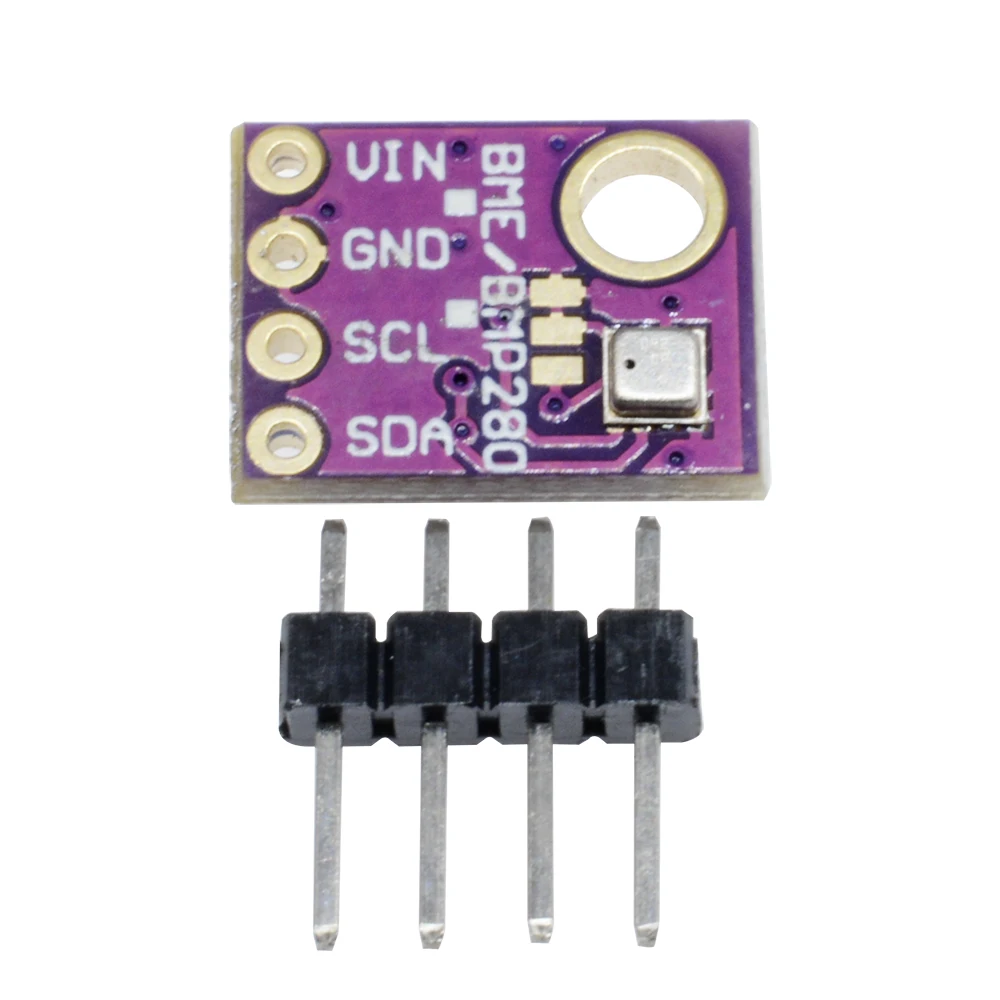

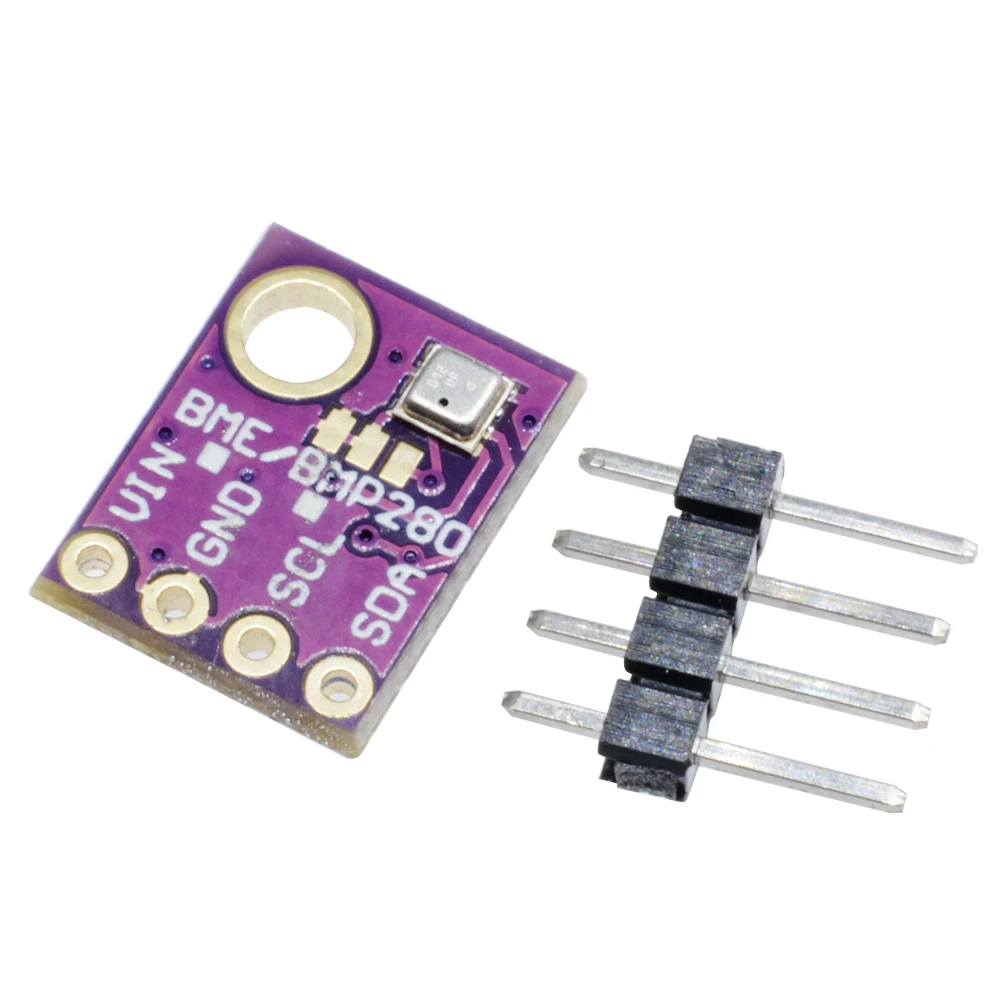

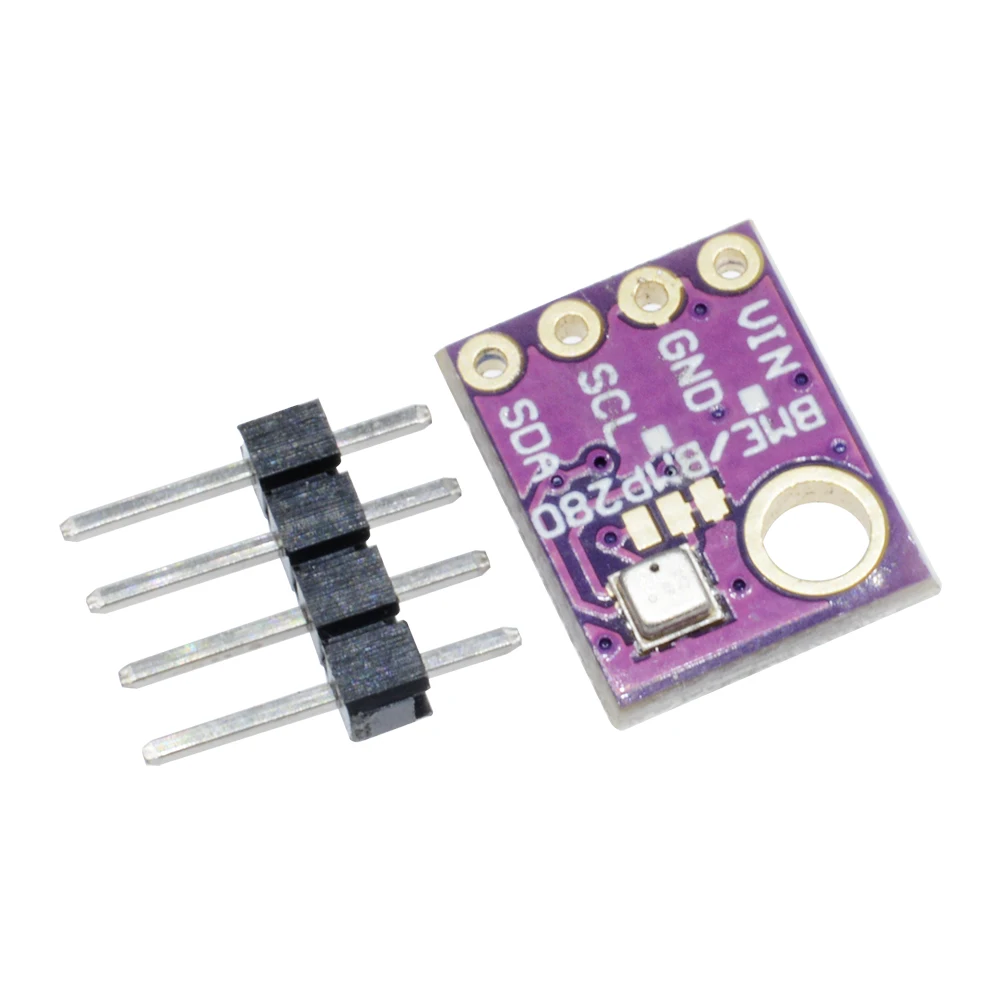

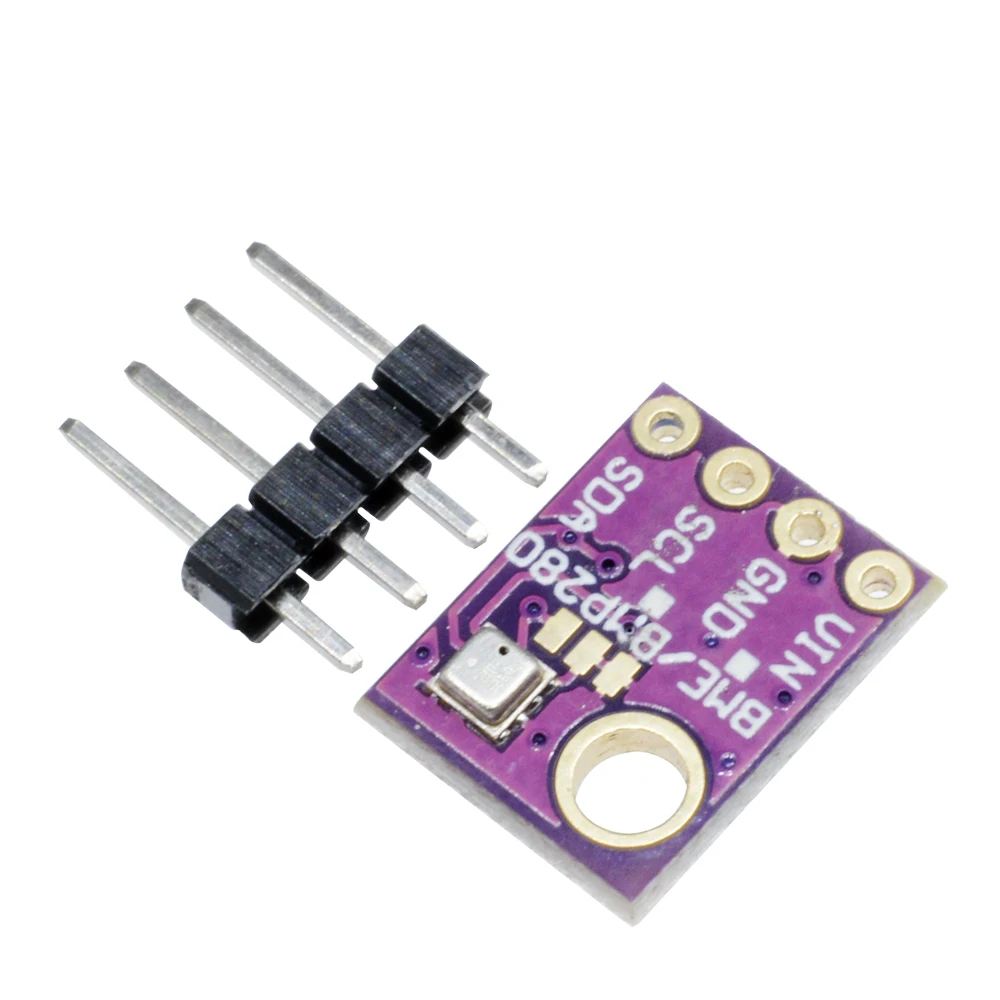

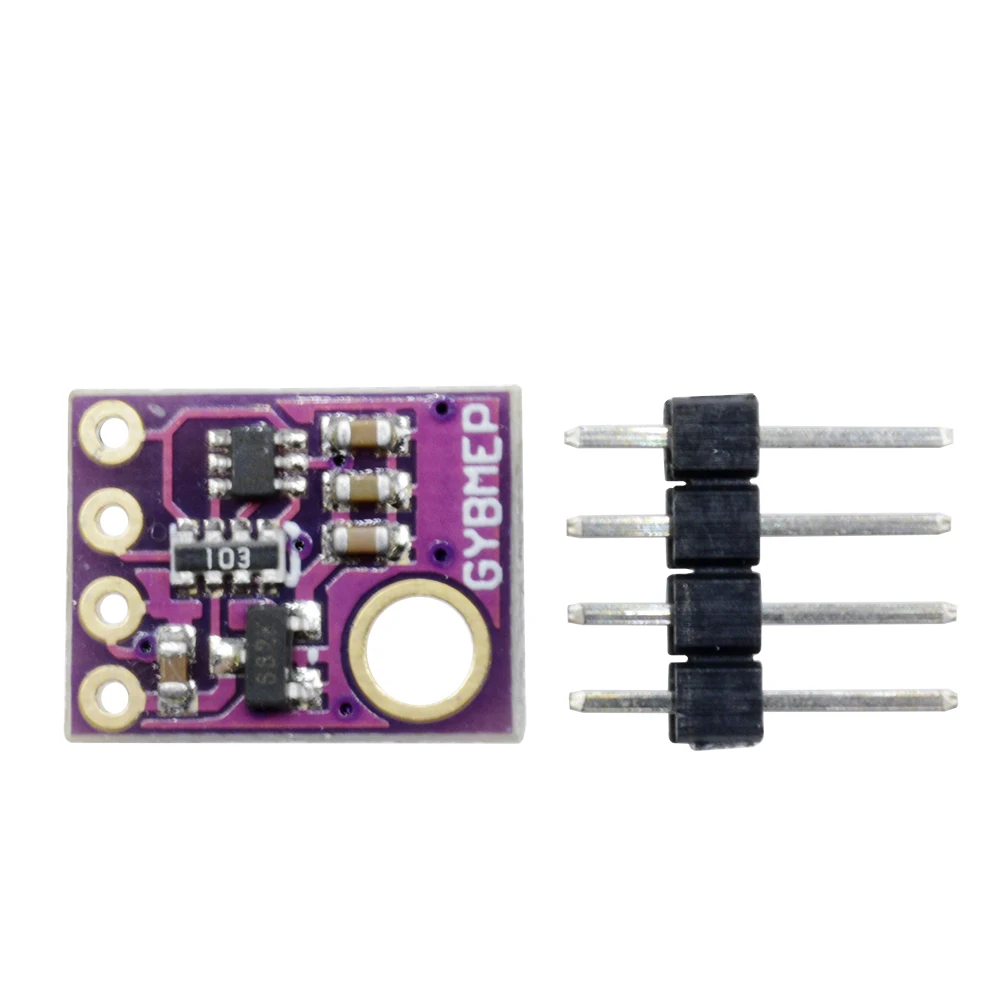

1PCS * GY-BME280 BME280 Digital Sensor Module Breakout Temperature Humidity Barometric Pressure Module 3.3V
